“Urban Jungle” Public Art Installation

The “Urban Jungle” project is a large-scale, site-specific public art installation designed to transform cold, brutalist urban architecture into a vibrant, engaging space. By introducing a massive, biologically inspired inflatable creature onto the facade of a multi-story concrete parking structure, the project creates a striking visual contrast that disrupts the monotony of the daily commute and sparks community conversation.

Design Concept

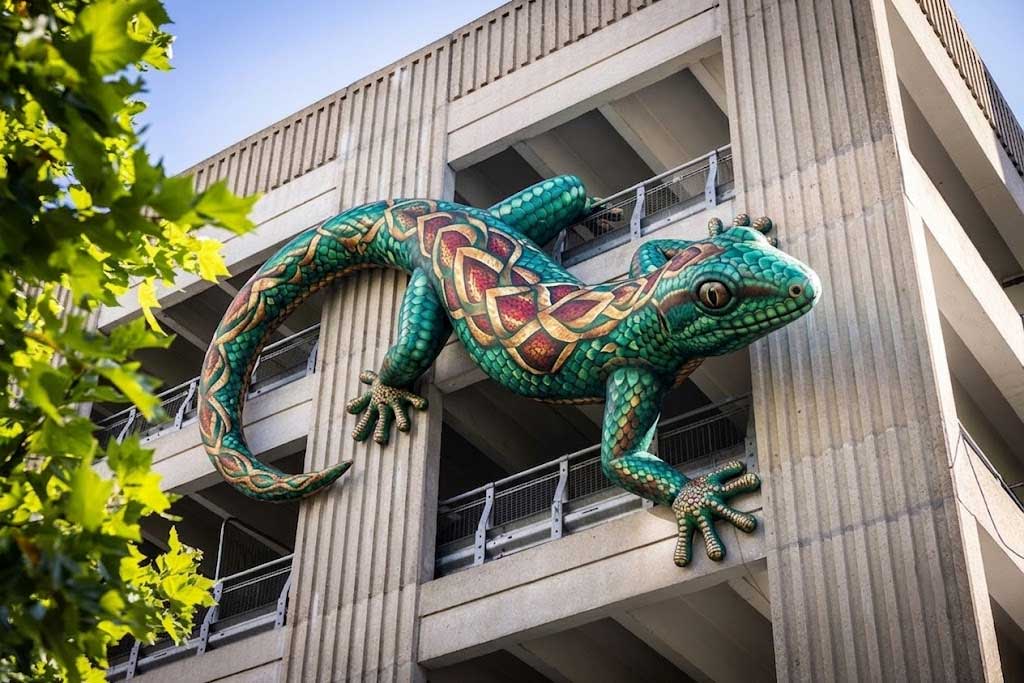

• Architectural Contrast: The installation juxtaposes the rigid, linear concrete pillars of the parking garage with the fluid, organic curves of a giant lizard.

• The Power of Color: Moving away from standard urban greys, the creature features an intricate pattern of emerald greens, metallic golds, and deep crimson, mimicking the complex beauty of natural scales while remaining highly visible from a distance.

• Dynamic Motion: Instead of a static display, the model is designed to look as if it is actively scaling the building, peeking around the corner to create a sense of life, curiosity, and playfulness within a sterile environment.

Technical Specifications & Materials

• Dimensions: * Length: 14 meters (approx. 46 feet) from head to tail.

  • Width: 4.5 meters (approx. 15 feet) claw-to-claw span.

  • Height/Depth: 2.5 meters (approx. 8.2 feet) body thickness.

• Material: Premium 420D Oxford fabric with a waterproof, UV-resistant coating, supplemented with heavy-duty PVC tarpaulin at high-stress anchor points to withstand outdoor weather conditions.

• Inflation System: Equipped with two internal 950W continuous low-noise air blowers, integrated into the structure to maintain optimal pressure while minimizing public noise disturbance.

• Rigging & Safety: Secured using a multi-point high-tensile nylon webbing harness system anchored directly to the building’s structural concrete beams, rated to withstand wind gusts up to 60 km/h.

Project Budget & Timeline

Budget Breakdown (Total Estimate: $28,500)

Project Timeline (Total Duration: 10 Weeks)

• Weeks 1–2: Concept Approval & Engineering Review

  • Finalizing the 3D digital model and texture mapping.

  • Structural engineering approval for building anchor points.

• Weeks 3–6: Production & Manufacturing

  • High-definition textile printing of the scale patterns.

  • Precision cutting, sewing, and integration of internal air baffles.

• Week 7: Quality Assurance & Factory Testing

  • Full inflation test for 48 hours indoors to check for pressure drops or seams stress.

• Week 8: Site Preparation

  • Installation of discrete mechanical anchors and dedicated power lines on the parking structure.

• Week 9: On-Site Installation

  • Overnight rigging using a boom lift to minimize traffic disruption; final inflation and safety checks.

• Week 10: Public Launch & Monitoring

  • Official unveiling and scheduled weekly maintenance checks.
