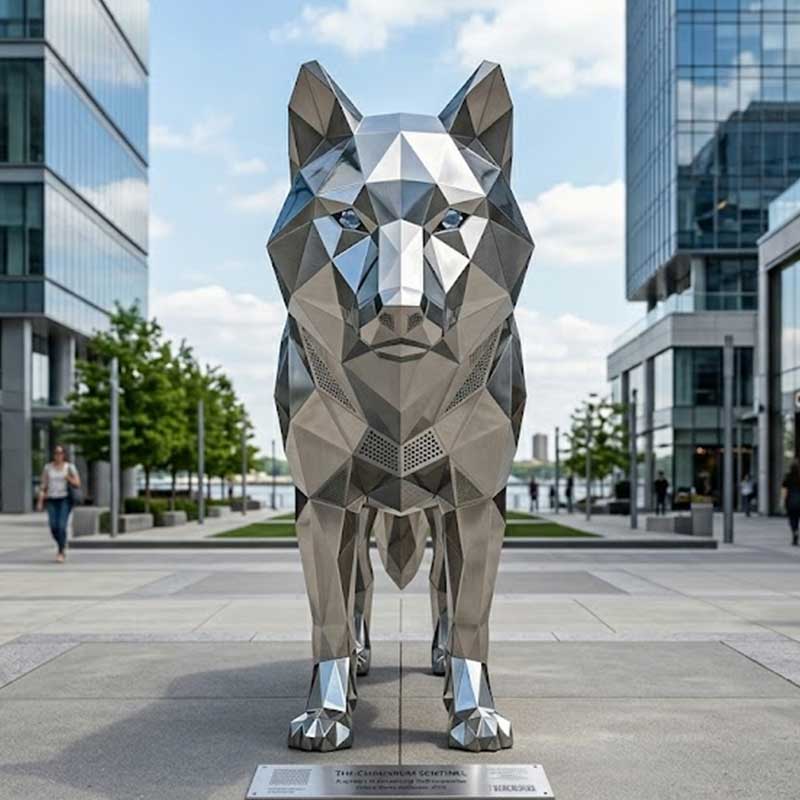

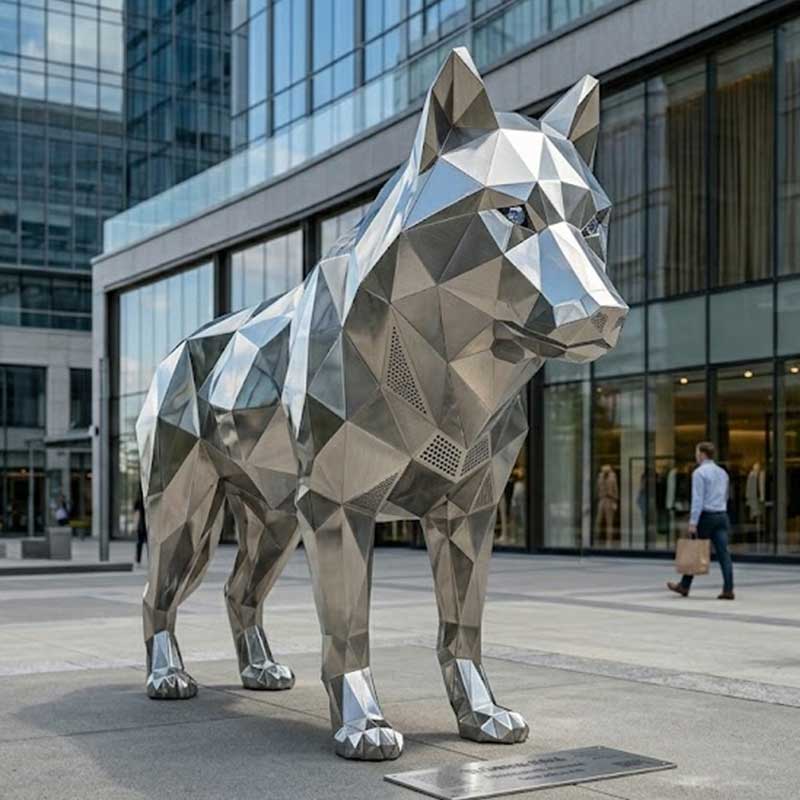

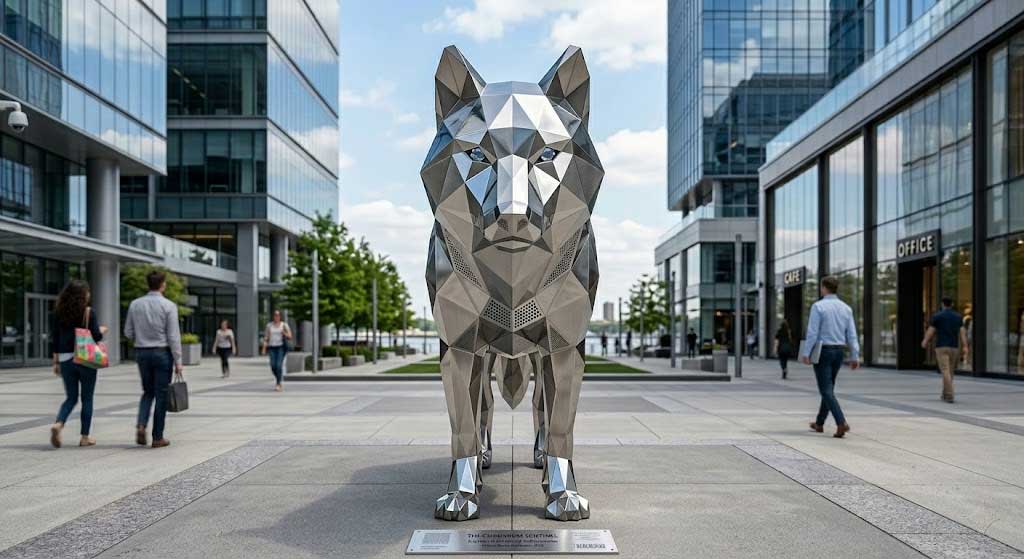

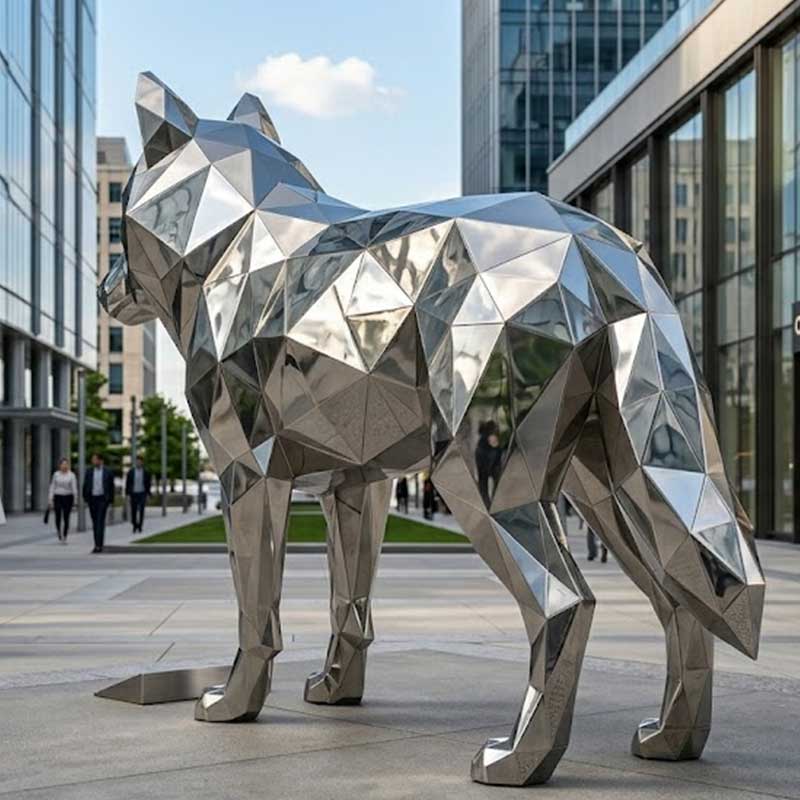

The Chromium Sentinel – Bringing Public Spaces to Life

1. Project Background: The Urban Oasis Initiative

In the heart of the rapidly expanding Metropolis Lakeside District, the municipal government, in partnership with Vanguard Development Group, launched the “Urban Oasis Initiative” in early 2025. The goal was to transform a high-traffic, concrete-dominated plaza into a vibrant, culturally engaging public square that bridges modern architecture with the natural world.

The site—situated between a luxury retail complex, a high-density tech park, and a scenic waterfront promenade—faced a common urban challenge: it was a place people walked through, but never lingered in. The developers recognized that the plaza lacked a visual anchor, a conversational centerpiece that could capture the imagination of tech professionals, shoppers, and tourists alike.

To solve this, the arts committee commissioned a landmark sculpture. The brief demanded a medium-sized animal sculpture that would symbolize resilience, intelligence, and adaptability. After a rigorous design competition, the concept of “The Chromium Sentinel”—a stylized, geometric stainless steel wolf—was selected. The wolf was chosen to honor the native fauna of the region while representing the collective, community-driven spirit of the city.

2. Design Concept & Artistic Philosophy

The Interface of Nature and Steel

The core design philosophy of The Chromium Sentinel lies in the interplay between organic form and industrial geometry. Rather than creating a hyper-realistic representation of a wolf, the design team opted for a low-poly, faceted aesthetic. This approach mimics the structure of crystals and digital wireframes, echoing the technological identity of the surrounding district.

Material Selection: Why Stainless Steel?

Grade 316L (Marine Grade) Stainless Steel was chosen as the exclusive medium for several critical reasons:

• Corrosion Resistance: Given the plaza’s proximity to a saltwater lakeside promenade, standard steel would degrade. 316L contains molybdenum, providing superior resistance to chlorides and environmental pollution.

• Dynamic Interactivity: The sculpture features a dual-finish technique. Alternating facets are treated with a high-gloss mirror polish, while others feature a directional brushed (satin) finish. As sunlight shifts throughout the day, the sculpture appears to move, shifting its highlights and shadows, while reflecting the vibrant colors of the passing crowds and changing seasons.

• Structural Longevity: The material ensures the artwork remains maintenance-free for decades, resistant to both weather extremes and potential vandalism.

3. Project Specifications & Dimensions

To ensure the sculpture felt impactful without overwhelming the pedestrian walkway, the proportions were meticulously calculated using 1:1 scale digital stress models.

• Height: 2.8 meters (9.2 feet) from the base to the tip of the ears.

• Length: 4.2 meters (13.8 feet) from the nose to the tail.

• Width: 1.5 meters (4.9 feet) at the widest point of the shoulders.

• Total Weight: Approximately 1,850 kilograms (4,078 lbs), including the internal structural skeleton.

• Internal Support: An internal framework constructed from hot-dip galvanized structural carbon steel ($Q355B$), engineered to withstand wind loads up to Zone 4 (typhoon/hurricane resistance).

4. Financial Blueprint & Project Budget

The project was funded through a public-private partnership ($60\%$ private developer investment, $40\%$ municipal arts grant). The total allocated budget was $285,000 USD, broken down into five distinct phases to guarantee financial transparency and accountability:

5. Timeline & Project Lifecycle

The project operated on a strict 10-month timeline from initial concept approval to the public unveiling ceremony. Precision planning ensured zero delays, allowing the sculpture to open concurrently with the plaza’s grand re-opening.

Phase 1: Conceptualization & Digital Engineering (Months 1–2)

The artist’s sketches were translated into high-precision CAD and parametric software. Structural engineers conducted Finite Element Analysis (FEA) to ensure that the wolf’s center of gravity was perfectly balanced and that its paws could securely anchor to the subterranean concrete foundation.

Phase 2: Material Sourcing & Hand-Forging (Months 3–6)

Fabrication took place in a specialized high-end art foundry. The 4mm stainless steel plates were laser-cut into precise geometric polygons. Master craftsmen then used traditional forging hammers and English wheels to shape the subtle contours within the facets, followed by rigorous TIG (Tungsten Inert Gas) welding. Every weld seam was ground down and polished internally and externally to ensure seamless transitions.

Phase 3: Finishing & Pre-Assembly (Months 7–8)

The dual-finish application was executed. Artisans spent over 300 hours hand-polishing the reflective panels to a flawless #8 Mirror Finish, while protecting adjacent panels slated for the #4 Brushed Satin texture. A trial assembly was conducted inside the foundry to inspect structural integrity before dismantling for transport.

Phase 4: Logistics & Substructure Preparation (Month 9)

At the plaza site, civil engineers excavated a 2-meter deep pit to pour a steel-reinforced concrete foundation pile. Heavy-duty chemical anchor bolts ($M24$ grade) were cast directly into the concrete, waiting to receive the sculpture’s baseplates.

Phase 5: Installation & Grand Unveiling (Month 10)

To avoid disrupting daytime city traffic, the sculpture was transported via an oversized flatbed truck at 2:00 AM. A 50-ton mobile crane carefully lifted The Chromium Sentinel into place. By 6:00 AM, the baseplates were securely bolted, welded, and concealed beneath the plaza’s granite paving stones.

6.  Project Impact

The unveiling of The Chromium Sentinel was a resounding success. By blending cutting-edge digital aesthetics with time-honored metalworking craftsmanship, the sculpture has achieved exactly what the urban developers intended: it transformed a lifeless transit space into a destination.

Today, the sculpture acts as a local meeting point (“Let’s meet at the Wolf”). On sunny days, children interact with their warped reflections in the mirror-polished facets; at night, integrated LED uplights embedded in the plaza floor project sharp, dramatic shadows from the sculpture’s geometric edges onto the surrounding buildings. The Chromium Sentinel stands as a testament to the power of public art when backed by meticulous engineering, realistic budgeting, and flawless project execution.
