The Birth of “Sparky the Cyber-Pup”

1. Project Background: Revitalizing the Digital District

In the heart of Metro City’s newly designated Tech & Creative District, the local municipal government and a leading commercial property developer, Nexus Holdings, faced a unique urban challenge. The newly constructed pedestrian plaza, while architecturally sleek and modern, lacked a distinct visual identity. It felt overly corporate, sterile, and failed to engage the younger demographic and families who frequented the surrounding digital entertainment hubs and trendy cafes.

The brief called for a public art installation that could bridge the gap between cutting-edge technology and human warmth. Instead of a traditional, abstract geometric structure, the client envisioned a medium-scale, character-driven IP (Intellectual Property) sculpture. The character, named Sparky the Cyber-Pup, was already a popular 2D digital avatar used in the city’s smart-transit apps. The goal was to bring Sparky into the physical world, creating a vibrant, photo-worthy landmark that would boost social media engagement, enhance foot traffic, and foster a sense of community joy.

Because the plaza experiences high-volume pedestrian traffic and unpredictable outdoor weather conditions, the fabrication material needed to be exceptionally durable, safe, and visually striking. Mirror-polished marine-grade stainless steel was chosen as the primary medium to reflect the surrounding city lights and the changing colors of the sky.

2. Design Concept & Philosophy: Playful Reflection

The core design philosophy of “Sparky the Cyber-Pup” revolves around “Interactive Nostalgia.” The sculpture captures a whimsical, low-poly cartoon aesthetic, reminiscent of early 3D video games, but executed with ultra-modern fabrication precision. Sparky is depicted in a dynamic, joyful pose—mid-stride with an oversized, floppy ear catching the wind and a curved tail pointed toward the sky.

Materiality and Light Interaction

By utilizing mirror-polished 316L stainless steel, the sculpture acts as a living canvas. During the day, its curved, reflective surfaces mirror the bustling movements of the citizens, the vibrant colors of their clothing, and the drifting clouds above, making the art piece feel active and ever-changing.

Integrated Night-Time Lighting

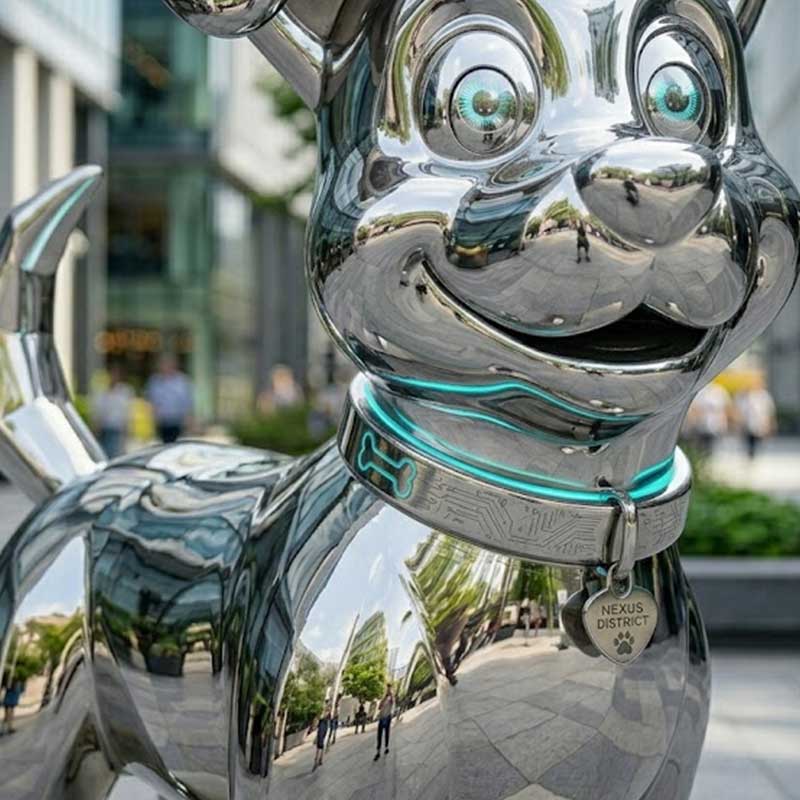

To ensure the sculpture remained a focal point after dark, the design integrated an internal, custom-programmed LED matrix. The light subtly leaks through precise, laser-cut geometric seams along Sparky’s collar and eyes. At night, instead of just being lit from the outside, the sculpture appears to pulse with a soft, neon-cyan heartbeat, mimicking a living digital entity and creating an enchanting, cinematic atmosphere in the plaza.

3. Technical Specifications & Dimensions

To fit perfectly within the pedestrian plaza without overwhelming the walkway or getting lost in the architectural scale, the sculpture was designed to a precise medium-scale specification.

• Sculpture Character: “Sparky the Cyber-Pup” (Cartoon/IP Character)

• Total Height: 3.2 meters (approx. 10.5 feet) including the base.

• Width/Span: 2.4 meters (approx. 7.8 feet) from front paw to tail.

• Depth: 1.8 meters (approx. 5.9 feet).

• Primary Material: 316L Stainless Steel (Sheet thickness: 3.0mm to ensure flawless anti-dent durability).

• Finish: High-gloss mirror polishing (8K finish) combined with selective matte bead-blasted accents on the collar for texture contrast.

• Internal Structure: Hot-dip galvanized steel reinforcement framework ($Q235B$) engineered to withstand wind loads up to Category 12 typhoons.

• Foundation: Recessed reinforced concrete pad with anchor bolt plates, completely hidden beneath the plaza’s granite paving.

4. Project Timeline & Lifecycle Phase

The project was executed over a strict 16-week timeline, moving seamlessly from digital conceptualization to the final onsite unveiling.

Phase 1: Digital Refinement & Optimization (Weeks 1–3)

The project began by converting the client’s 2D digital character asset into a high-precision 3D digital model. Industrial designers adjusted the proportions to ensure structural balance, verifying that the weight distribution centered perfectly over Sparky’s three anchoring paws.

Phase 2: 1:1 Scale Physical Model (Weeks 4–5)

Before cutting into steel, a 1:1 scale fiberglass model was CNC-milled and manually refined. This allowed the artistic director and the client to audit the physical proportions, sightlines, and cartoon expressions in a real-world scale.

Phase 3: Forging and Structural Fabrication (Weeks 6–10)

Artisans used the approved model to manually forge individual 3.0mm stainless steel plates over custom molds. These plates were systematically welded onto the internal galvanized steel skeleton using high-grade TIG (Tungsten Inert Gas) welding.

Phase 4: Seamless Polishing & Testing (Weeks 11–13)

The welded sculpture underwent seven rigorous stages of progressive grinding and polishing. All weld seams were completely erased, achieving a flawless, monolithic 8K mirror reflection. Simultaneously, the internal LED circuitry and cooling channels were installed and stress-tested for waterproof resilience (IP67 rating).

Phase 5: Logistics, Installation & Unveiling (Weeks 14–16)

The 1.2-ton sculpture was carefully wrapped in multi-layered protective film and transported via a low-bed crane truck during midnight hours to avoid traffic disruption. On-site installation took just six hours, anchoring the sculpture securely to the pre-cast concrete foundation.

5. Financial Overview & Budget Breakdown

The total budget allocated for the “Sparky” installation was $145,000 USD. The budget was carefully partitioned to ensure premium material acquisition and artisan craftsmanship while keeping contingency reserves.

6. Project Outcome & Social Impact

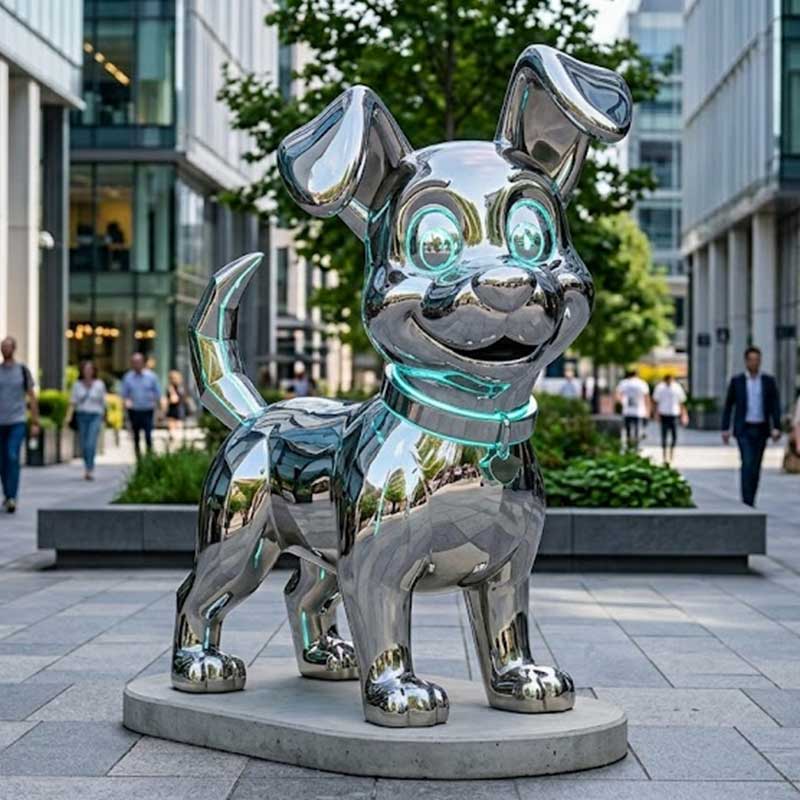

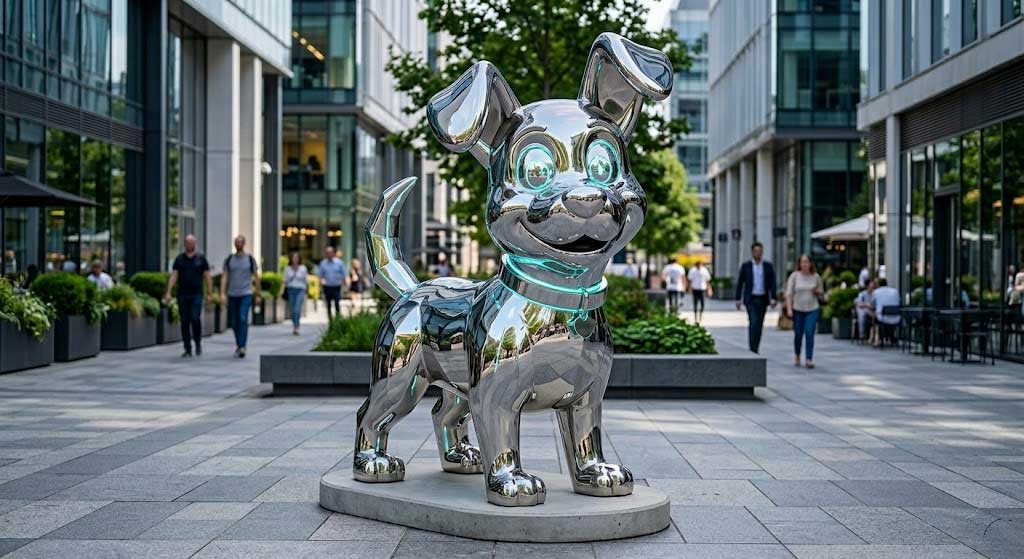

The unveiling of “Sparky the Cyber-Pup” was a resounding success. Positioned strategically near the entrance of the primary commercial mall, the sculpture instantly became the definitive landmark of the Tech & Creative District.

Key Metrics Achieved within 3 Months Post-Launch:

• Foot Traffic: The plaza saw a measured 28% increase in daily foot traffic, particularly during late afternoon and evening hours.

• Social Media Engagement: The location tag generated over 50,000 unique user-generated posts on popular social media platforms within the first 90 days, turning Sparky into a viral city icon.

• Economic Lift: Local business owners, especially open-air cafes and dessert shops facing the sculpture, reported a 15-20% boost in revenue due to visitors lingering longer in the square.

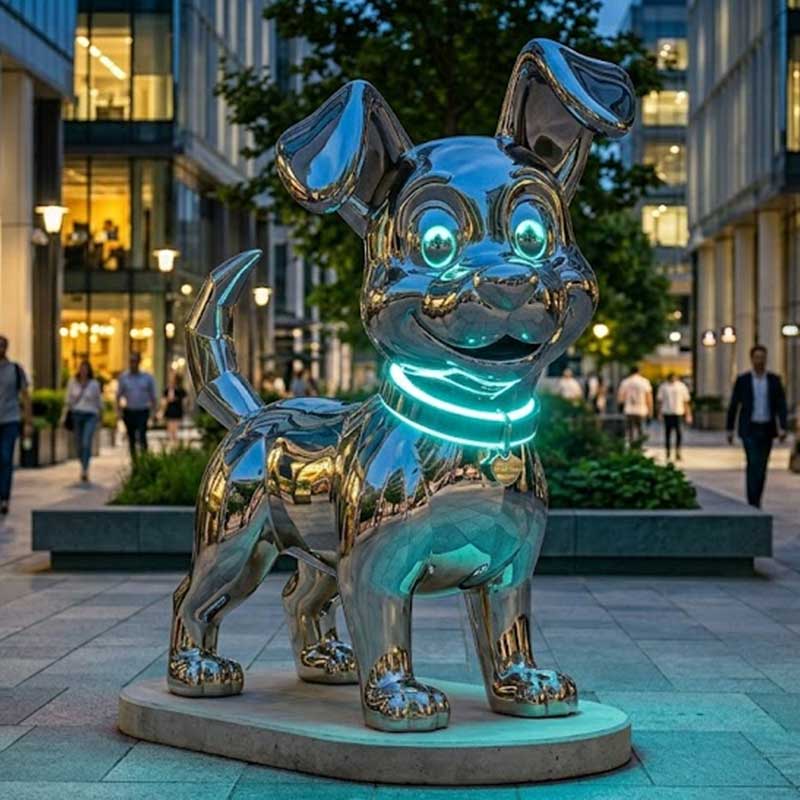

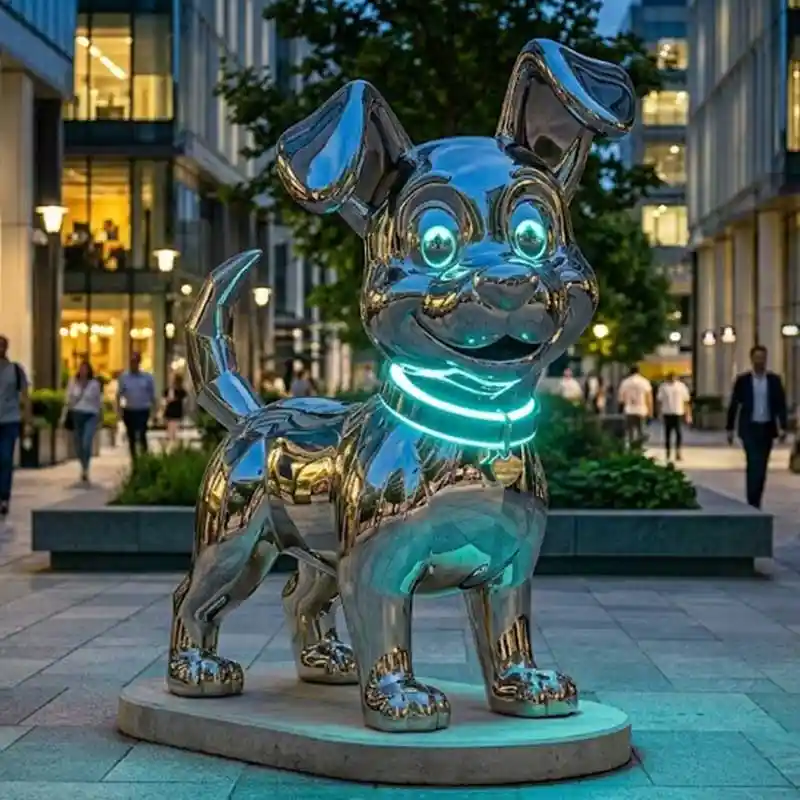

The mirror finish successfully captured the playful spirit of the neighborhood by day, while its ambient, pulsing internal neon light turned it into a breathtaking, futuristic urban beacon by night. The project stands as a prime example of how IP-driven cartoon art, combined with high-end industrial fabrication, can humanize modern urban spaces.
