THE BIRTH OF “NEO-SPARK”

1. Executive Summary

In the landscape of modern retail and urban commercial spaces, the intersection of digital intellectual property (IP) and physical art has become a powerful catalyst for consumer engagement. This case study documents the complete lifecycle—from narrative inception to site installation—of “Neo-Spark,” a medium-scale stainless steel cartoon character sculpture. Commissioned for the grand opening of the Aura Horizon Tech & Shopping Plaza in a bustling metropolitan district, the sculpture serves as both a high-tech mascot and an interactive public landmark. Crafted from marine-grade stainless steel and finished to a flawless mirror reflection, Neo-Spark bridges the gap between whimsical digital animation and sophisticated contemporary craftsmanship.

2. Project Background & Client Brief

The Client and the Venue

The client, Aura Horizon Group, is a forward-thinking commercial real estate developer specializing in tech-integrated retail environments. For their flagship property, they required a signature art piece to anchor the central outdoor atrium—a high-traffic zone connecting a premium digital electronics pavilion with an open-air lifestyle and dining terrace.

The Challenge

The client sought an installation that could accomplish three distinct goals:

• Brand Personification: Physicalize “Spark,” a beloved 2D virtual character from the plaza’s interactive digital marketing campaigns.

• Durability and Safety: Maintain pristine aesthetic appeal under diverse outdoor weather conditions (heavy rain, intense summer UV rays, and high humidity) while ensuring structural safety for a high-traffic public space where children and adults would interact closely with the artwork.

• Photo-Centric Appeal: Act as an “Instagrammable” landmark that naturally encourages social media check-ins, utilizing reflective surfaces to capture the shifting colors of the surrounding city lights.

3. Design Concept & Philosophy

The Character Narrative

“Spark” is a futuristic, playful cyber-pup character characterized by clean geometric lines, oversized expressive ears, and a sleek, dynamic posture. The character symbolizes curiosity, connectivity, and energy.

Design Translation: From 2D Pixels to 3D Steel

Translating a soft, animated 2D cartoon character into hard, reflective stainless steel required a delicate balance between playful organic curves and precise industrial geometry.

The design team opted for an optimized organic-geometric style. While the character retained its cute, rounded proportions to ensure it remained approachable and friendly, the surface was broken down into perfectly smooth, flowing continuous curves ($C^2$ continuity). This choice was critical because stainless steel mirror-polishing amplifies any surface imperfection; any flat spots or asymmetrical warping would distort the reflected environment, ruining the optical illusion of a flawless, liquid-metal entity.

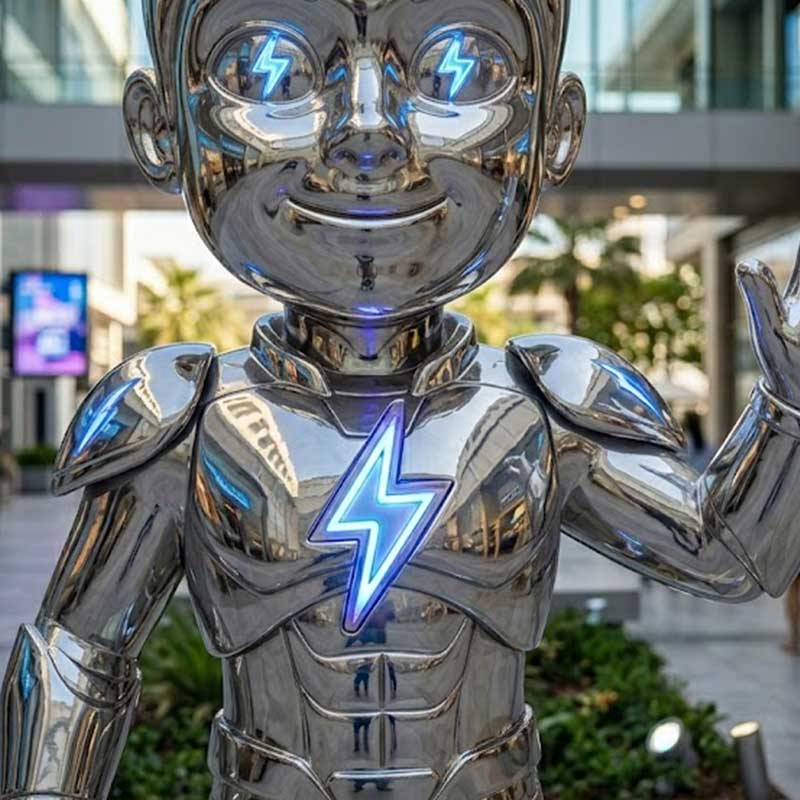

To add visual contrast and emphasize the tech-forward theme, the main body was designated for a silver mirror finish, while the character’s signature collar and lightning-bolt emblem were designed to feature an electroplated rose-gold and vibrant neon-blue finish, respectively.

4. Technical Specifications & Dimensions

To ensure the sculpture felt substantial without overwhelming the pedestrian plaza, the scale was meticulously calculated against the surrounding architecture.

5. Project Timeline & Lifecycle

The project was executed over a strict 18-week timeline, divided into four distinct phases. Tight coordination between the design studio, fabrication foundry, and onsite engineering teams was required to hit the hard deadline of the mall’s grand opening.

Phase 1: Digital Engineering & Structural Calculations (Weeks 1–4)

The approved 3D model underwent finite element analysis (FEA) to simulate wind loads (up to 120 km/h) and structural stress. Because the sculpture features large, heavy ears extending outward, the internal structural framework had to be balanced perfectly to prevent tipping. A blueprint for the internal galvanized steel skeleton was generated alongside the external panel mapping layout.

Phase 2: Forging and Shaping (Weeks 5–8)

Fabrication began with the creation of a 1:1 fiberglass mold to act as an exact physical reference. Skilled artisans used the cold-working method, precisely cutting 3.0mm thick 316L stainless steel sheets and hand-hammering them over the mold forms. Layer by layer, the flat metal sheets took on the complex, voluptuous curves of the cartoon character.

Phase 3: Assembly, Welding, and Polishing (Weeks 9–14)

The shaped steel plates were meticulously assembled over the internal structural armature and joined using Tungsten Inert Gas (TIG) welding. Once fully welded, the sculpture looked like a rough, scarred metal shell.

The magic happened during the grinding and polishing phase. For four weeks, technicians used progressively finer abrasives—starting from coarse #80 grit sanding discs up to ultra-fine #800 grit polishing compounds. This labor-intensive process removed all weld seams, resulting in a single, monolithic, seamless piece.

Phase 4: Color Accents & Quality Control (Weeks 15–16)

The lightning bolt and collar sections were treated using Physical Vapor Deposition (PVD) coating to infuse the vibrant rose-gold and blue tones directly into the metal surface at a molecular level, ensuring the colors would never chip or peel under outdoor sunlight.

6. Project Budget Breakdown

The total capital expenditure for the project was $148,000 USD. The budget was strategically allocated to prioritize material quality and the highly skilled labor required for a flawless mirror finish.

• Design, 3D Engineering & Structural Verification: $18,000 (12%)

• Raw Materials (316L Stainless Steel, Internal Galvanized Steel): $32,000 (22%)

• Labor (Master Forgers, Welders, Precision Finishers): $55,000 (37%)

• Specialist Finishing (PVD Electroplating & Chemical Treatment): $15,000 (10%)

• Logistics, Heavy Crane Rental & Site Installation: $16,000 (11%)

• Contingency Fund: $12,000 (8%)

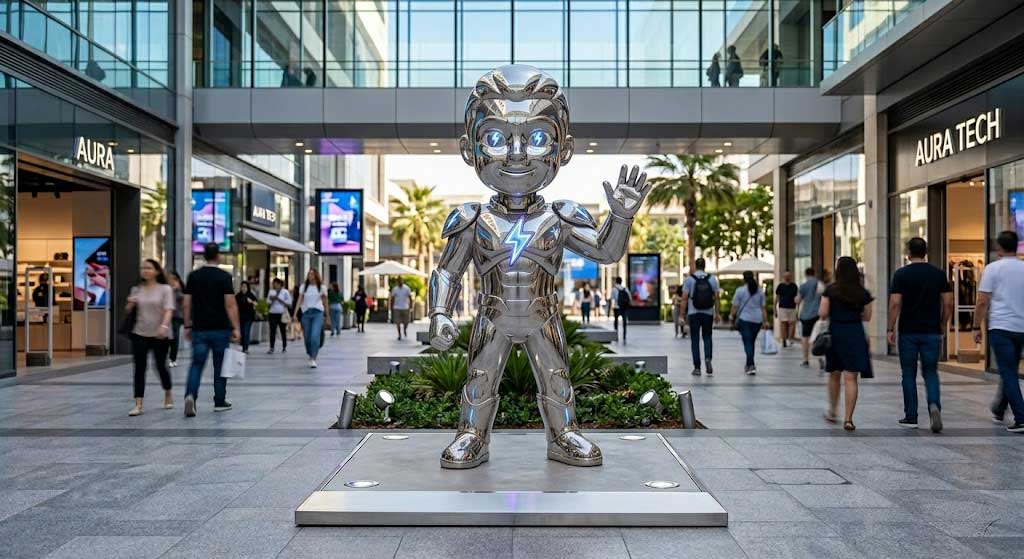

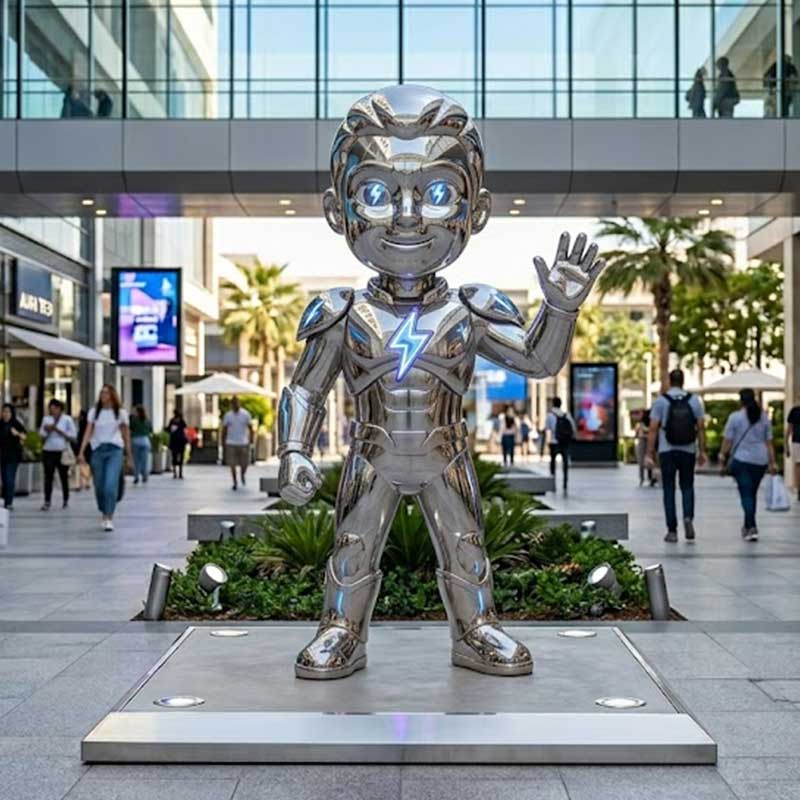

7. Site Installation & Environmental Integration

Installation was executed overnight between 11:00 PM and 4:00 AM to avoid disrupting pedestrian traffic and ongoing mall preparations.

Key Technical Highlight: The sculpture’s base plate was securely bolted to a pre-cast concrete foundation embedded beneath the plaza’s granite tiling using heavy-duty M24 chemical anchor bolts. This completely hid the mounting hardware, making it appear as though “Neo-Spark” was floating effortlessly on the plaza surface.

Lighting Design

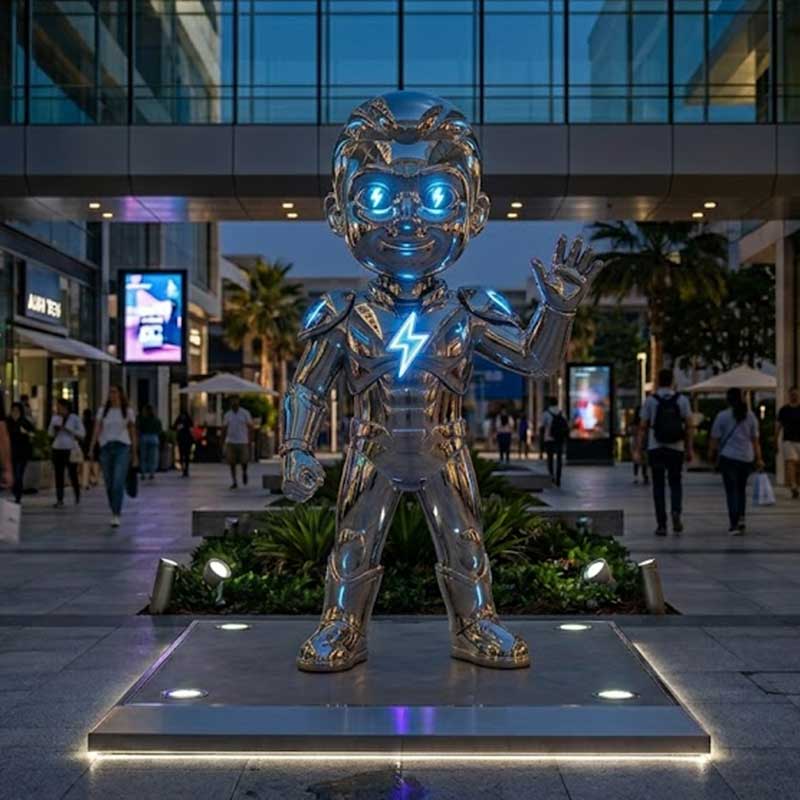

To maximize the impact of the mirror finish at night, the sculpture was surrounded by recessed, ground-mounted LED spotlights. These programmable lights projected shifting gradients of warm amber, soft magenta, and cool cyan onto the sculpture’s reflective skin. As pedestrians walked past, their own movements and the changing colors of the night sky were mirrored on the curves of the character, creating a dynamic, living art piece that altered its look every second.

8. Conclusion & Project Impact

The “Neo-Spark” stainless steel cartoon character sculpture was unveiled to the public on schedule during the plaza’s grand opening. The installation achieved immediate commercial and cultural success. Within the first month, the sculpture became the most tagged location for the shopping district on social media platforms, organically driving foot traffic to the surrounding retail spaces.

By utilizing high-grade 316L stainless steel and impeccable hand-polishing techniques, the project successfully transformed a playful corporate mascot into an enduring piece of high-end contemporary public art. It stands as a testament to how traditional craftsmanship and modern IP design can merge to redefine public spaces.
