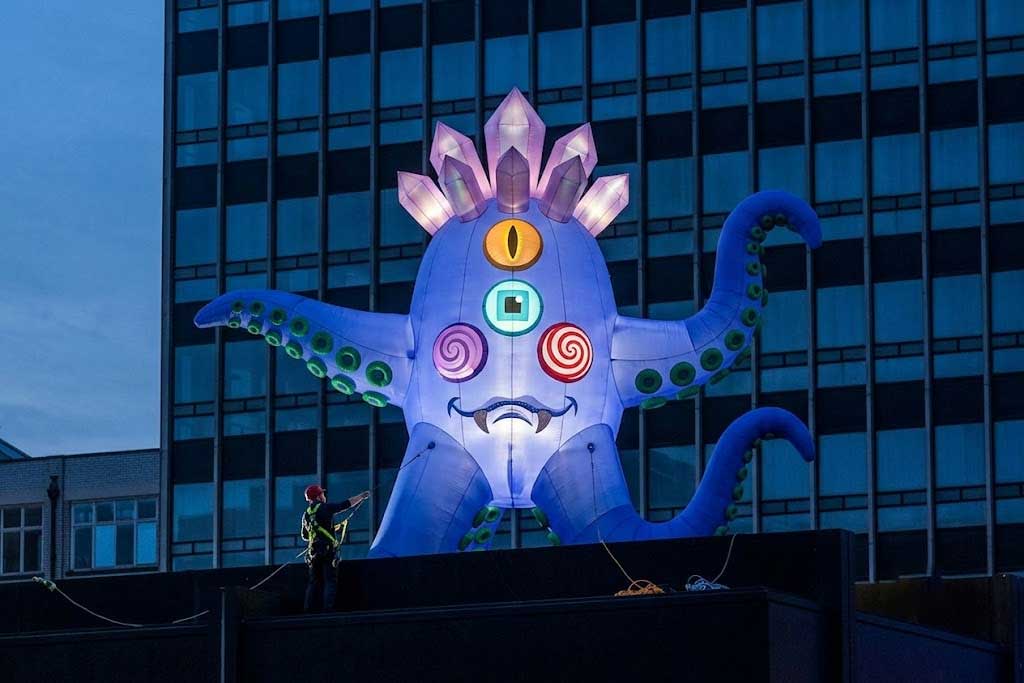

“The Abyssal Guardian” Inflatable Art Installation

Inflatable Sculpture

Project Overview

Project Name: The Abyssal Guardian (Public Art Installation)
Location: Corporate Headquarters Rooftop, Urban Center
Event: City Light & Art Festival 2026
Project Type: Custom Interactive Inflatable Sculpture

Design Concept

Inspired by bioluminescent deep-sea creatures and playful kaiju mythology, “The Abyssal Guardian” is designed to contrast with the rigid, geometric lines of modern urban architecture.

While the surrounding office building represents corporate structure and daily routine, this whimsical, blue-hued monster injection of creativity brings fantasy into the public sphere. Its multiple eyes symbolize perception and curiosity, while the crystalline crown represents the untapped creative energy within the city. During the dusk and night hours, the internal LED glow transforms the rooftop into a surreal stage, engaging pedestrians below and encouraging them to look up and reimagine their everyday environment.

Technical Specifications

Dimensions: Height: 12 meters (approx. 39.4 feet)
- Width (Tentacle Span): 16 meters (approx. 52.5 feet)
- Depth: 8 meters (approx. 26.2 feet)
Material: * Primary Body: High-density, flame-retardant 420D Oxford fabric with PU coating for weather resistance.

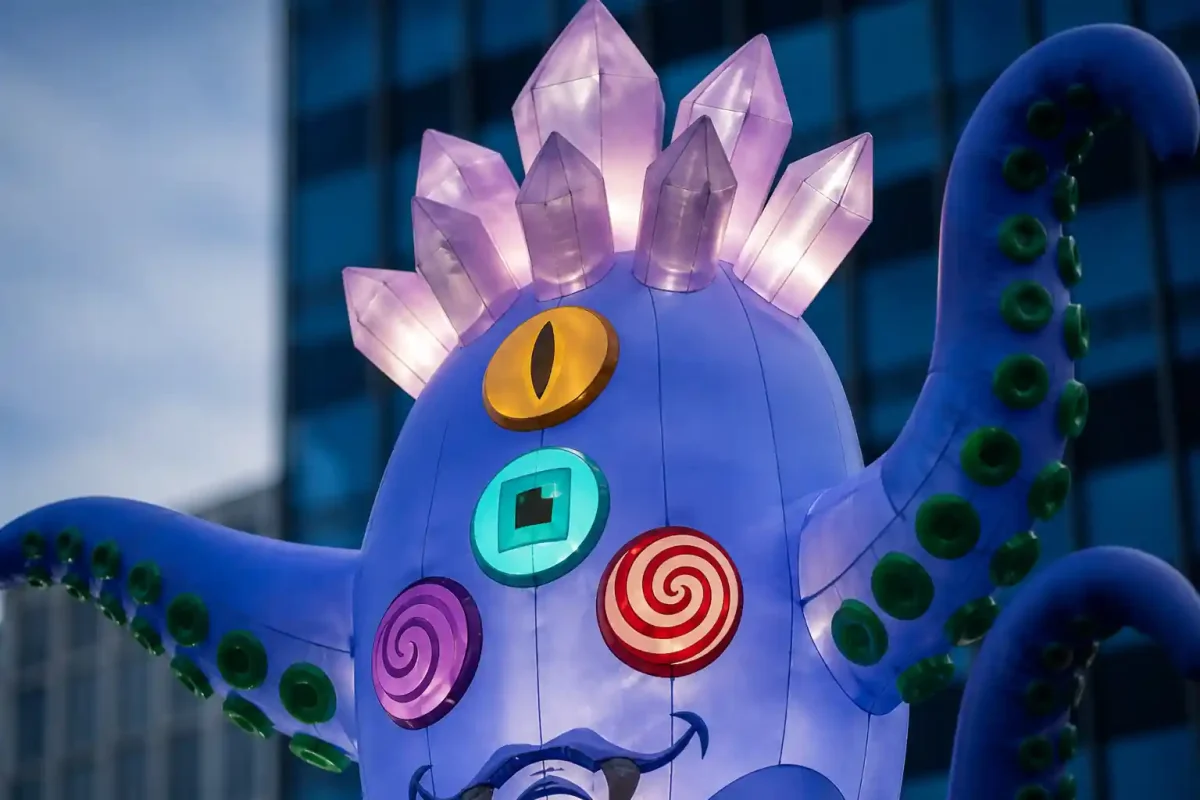

- Accents & Crown: Semi-translucent, reinforced PVC to optimize the internal LED light diffusion.
Anchoring System: Multi-point heavy-duty d-ring tie-downs anchored to the building’s structural rooftop rigging, utilizing high-tensile nylon ropes to withstand wind loads up to 45 km/h.
Illumination: Internal 150W high-output programmable RGB LED system with a specialized cooling fan setup.

Project Logistics & Timeline

Total Budget: $38,500 USD (Includes design, manufacturing, internal lighting, rigging engineering certification, and on-site installation crew).
Project Lifecycle: 10 Weeks

Execution & Maintenance

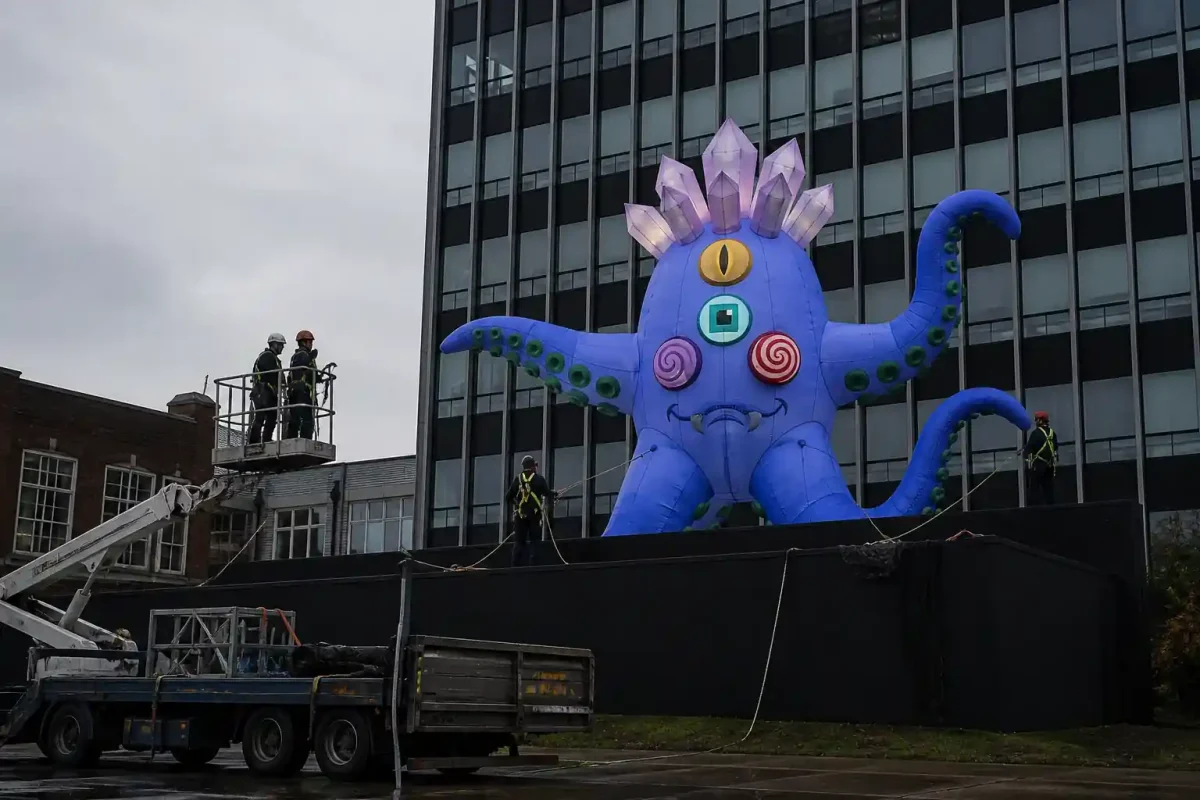

The installation requires a continuous-inflation system powered by two quiet-running 1500W external air blowers. A certified two-person rigging team handles the inflation, tethering adjustment, and daily safety checks on the rooftop to monitor wind speeds and pressure stability throughout the 2-week festival duration.
