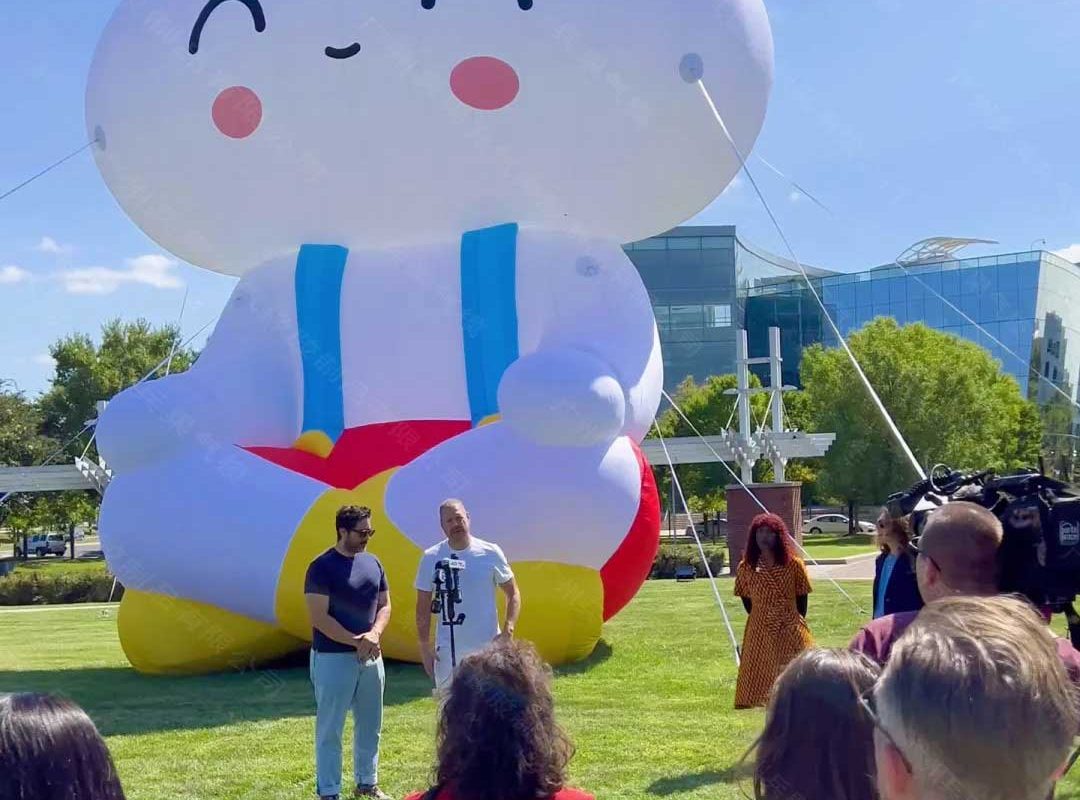

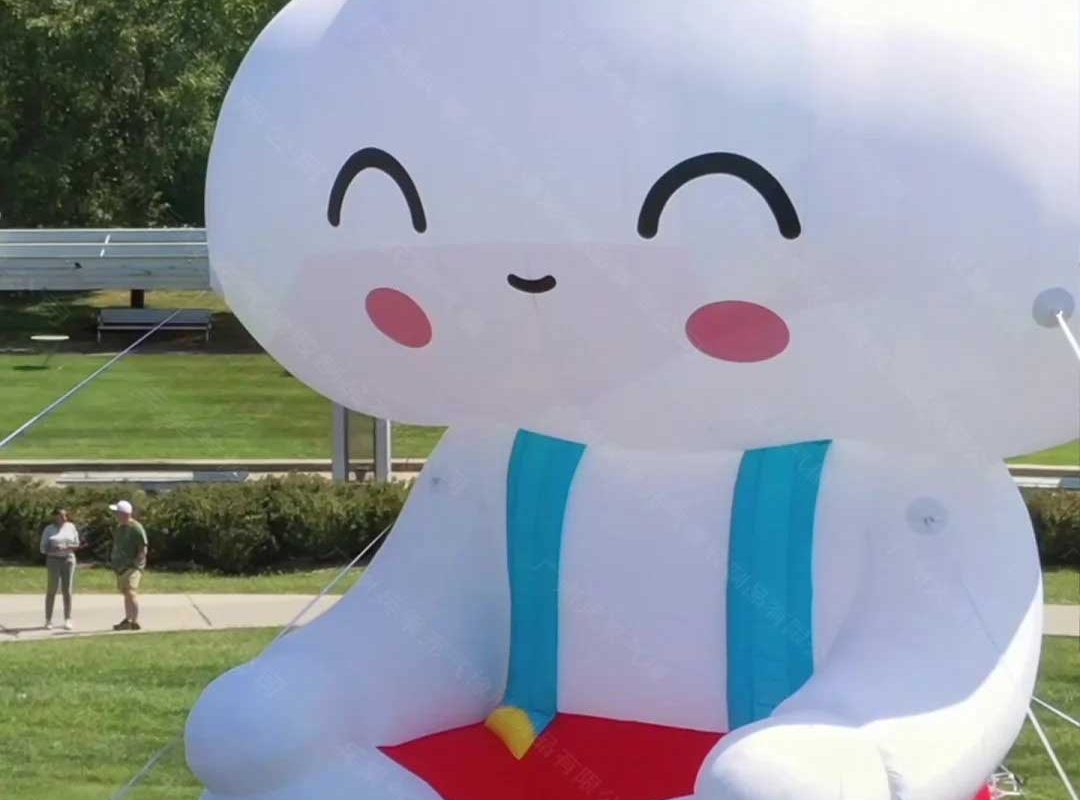

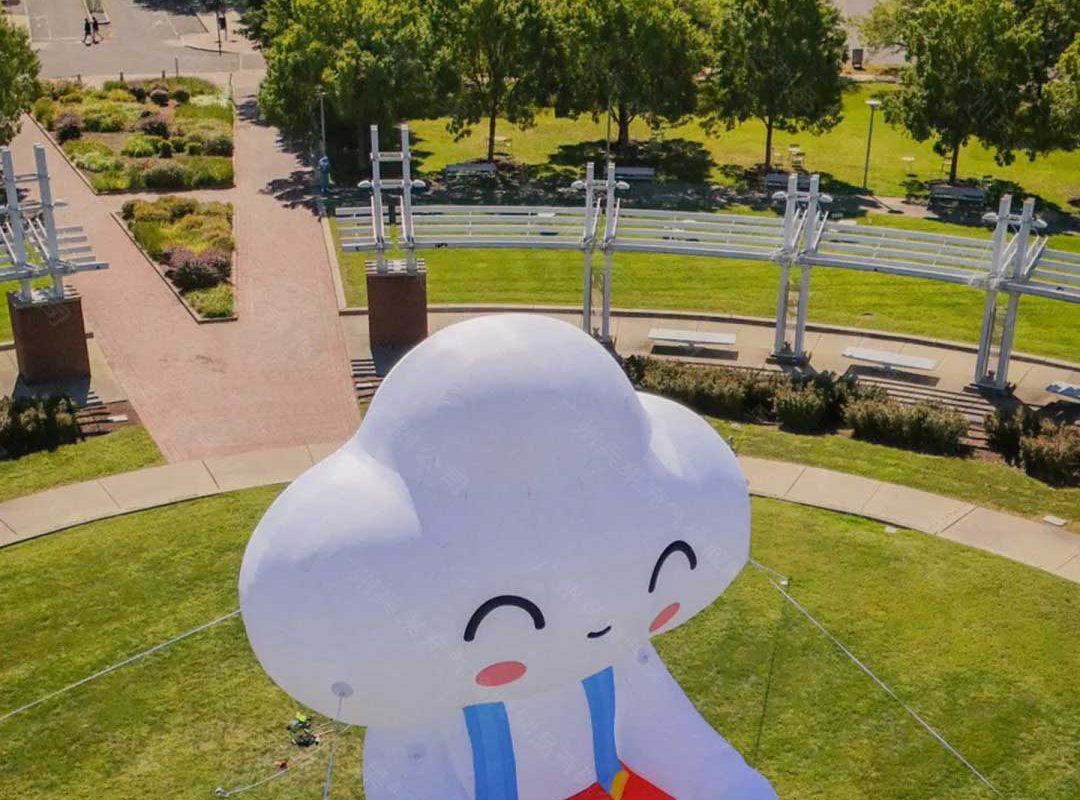

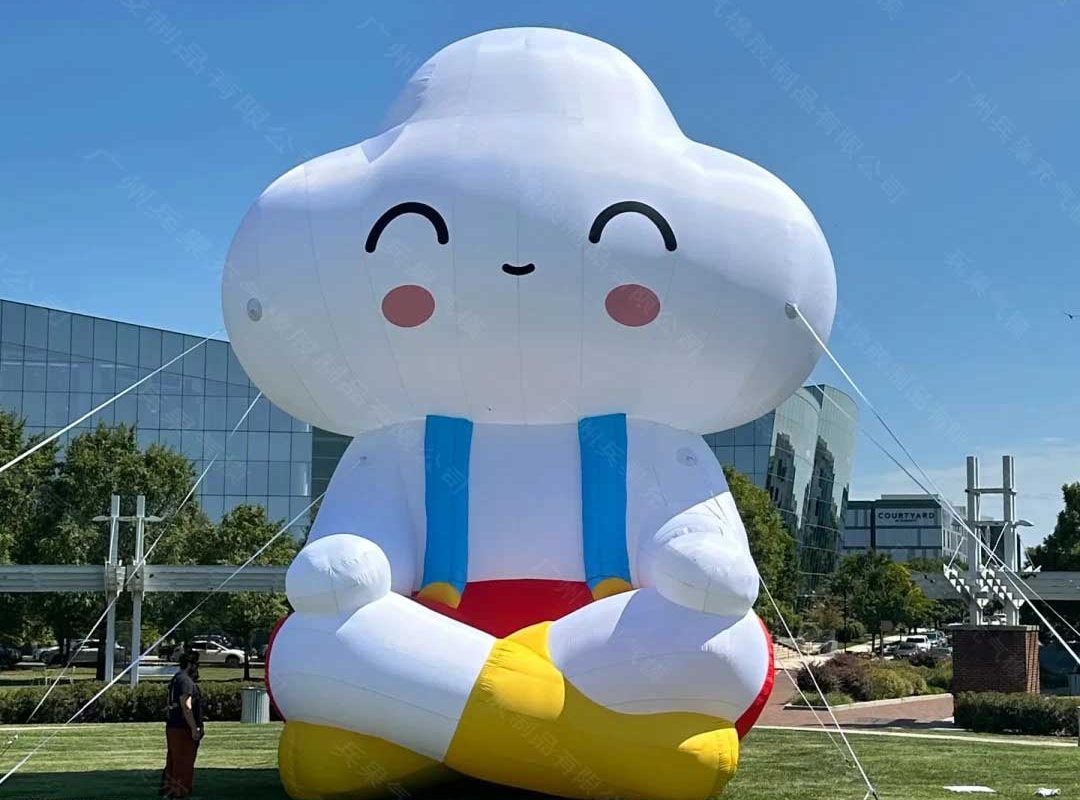

Giant Cloud Inflatable Sculpture

Inflatable Sculpture

1. Project Background

The Giant Cloud Inflatable Sculpture is designed as an immersive, large-scale art installation aimed at blurring the lines between art, nature, and urban spaces. Inspired by the fleeting, organic shapes of cumulus clouds, this floating aesthetic marvel serves as a whimsical landmark for outdoor festivals, contemporary art exhibitions, or high-profile brand activations. By mimicking the soft, weightless nature of a cloud in a grand, tangible format, the installation creates a dreamlike atmosphere, inviting audiences to look up, gather, and interact with their environment in a playful new way.

2. Project Timeline

The total estimated timeline for this project is 8 weeks, broken down into the following phases:

Weeks 1–2 (Design & Engineering): 3D modeling, structural engineering calculations for wind resistance, and pattern making.
Weeks 3–5 (Fabrication): Precision digital printing, CNC fabric cutting, and high-strength welding/stitching.
Week 6 (Testing & Quality Assurance): Continuous inflation testing, airtightness checks, and internal LED lighting integration.
Week 7 (Logistics & Shipping): Deflation, specialized packing, and transit to the venue.
Week 8 (On-site Installation & Launch): Anchoring, inflation, and final handover.

3. Materials & Specifications

To ensure the perfect balance of ethereal aesthetics and heavy-duty durability, the following premium materials are selected:

Main Body Fabric: Commercial-grade 0.4mm PVC-coated Nylon or Oxford Cloth with a double-layered TPU coating. This material features excellent tensile strength, UV resistance, and flame-retardant properties (certified to global safety standards).
Internal Structure: Heavy-duty D-ring anchor points reinforced with vinyl webbing for high-wind stability.
Illumination: Integrated, programmable, weather-resistant internal LED RGB smart lighting system to allow the cloud to change colors or glow from within at night.
Inflation System: Continuous-duty, low-noise, UL/CE-certified external air blowers.

4. Dimensions

Length: 393.7 inches (approx. 10 meters)
Width: 236.2 inches (approx. 6 meters)
Height: 196.8 inches (approx. 5 meters)

5. Budget Estimation

The total projected budget for this custom large-scale installation is $18,500 USD, allocated as follows:

Category	Description	Cost (USD)
Design & 3D Modeling	Structural blueprint, wind load calculations, and pattern design	$2,000
Material & Fabrication	High-grade PVC/Nylon fabric, cutting, and high-frequency welding	$8,500
Hardware & Equipment	2x Internal LED light kits and 2x High-power commercial air blowers	$2,500
Labor & Quality Testing	Assembly, seam reinforcement, and 72-hour inflation testing	$2,500
Shipping & Crating	Heavy-duty flight cases and international/domestic freight	$1,500
Contingency Fund	On-site installation support and unexpected expenses	$1,500
Total Estimated Budget		$18,500

Note: This budget excludes local venue permits, heavy-duty ground anchoring weights (e.g., concrete blocks or water bags), and on-site electricity access fees, which are to be provided by the host venue.
