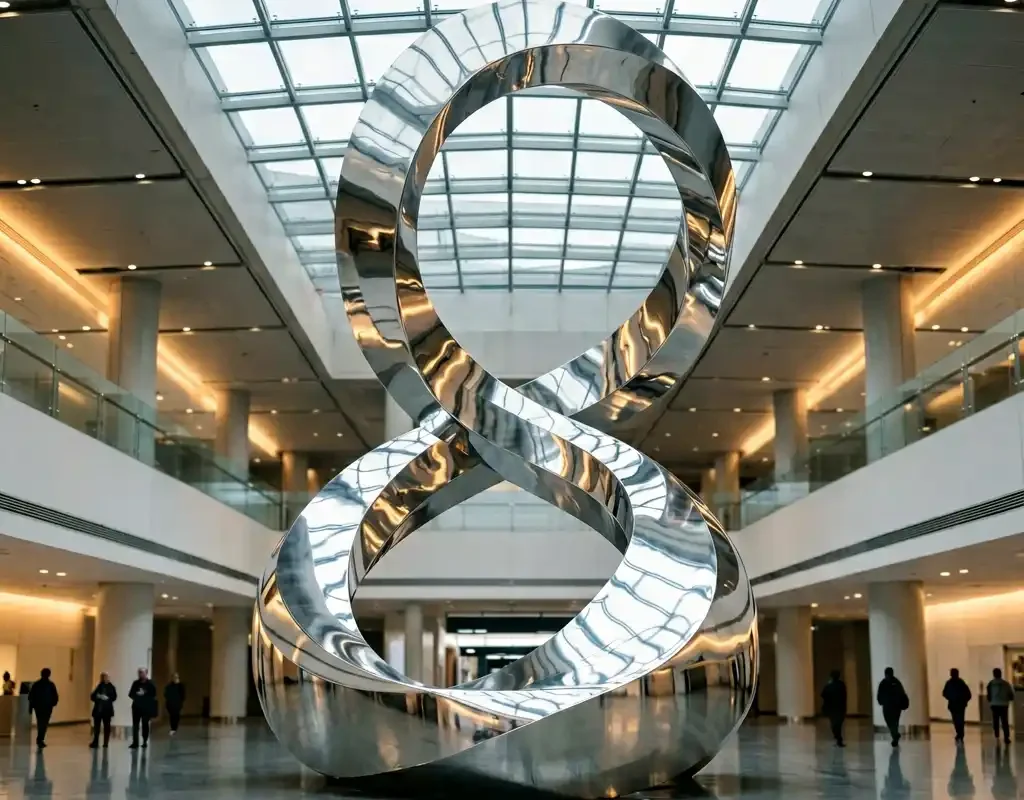

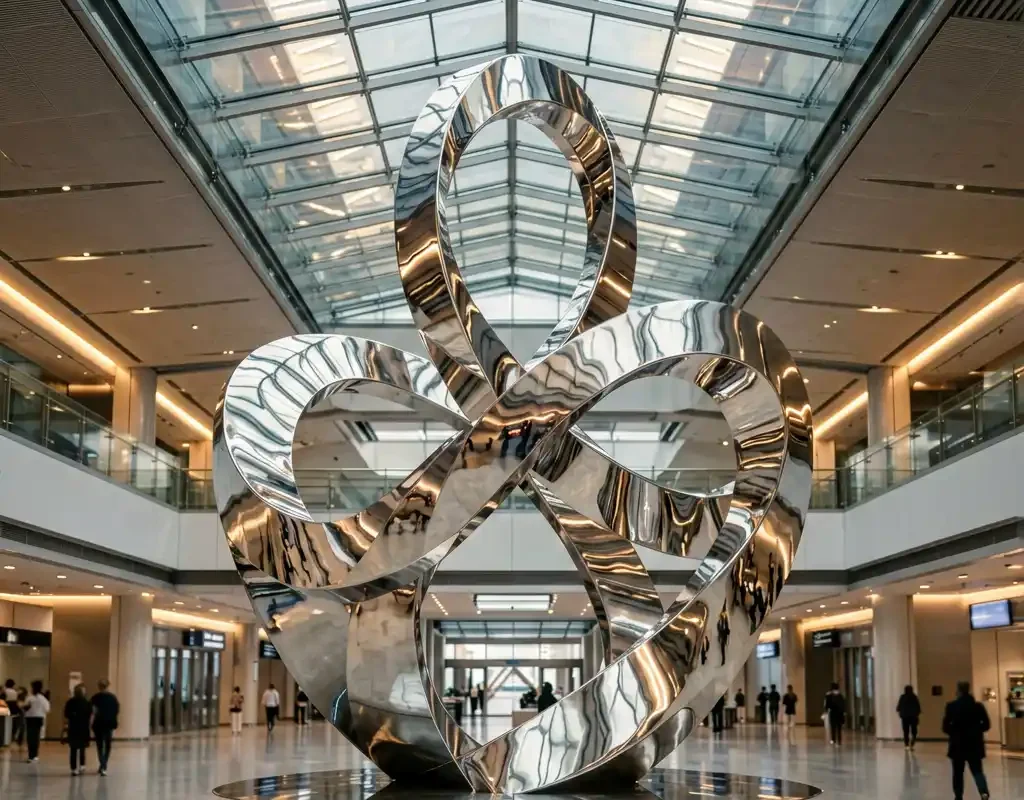

“Soaring Ribbons” — Mirror-Polished Stainless Steel Airport Terminal Sculpture

Public Art

1. Project Specifications

Project Name: “Soaring Ribbons” — Mirror-Polished Stainless Steel Airport Terminal Sculpture
Project Location: Airport Terminal Atrium
Dimensions (Size): 8m height × 4.5m width × 1.8m depth (Three Interconnected Ribbon Forms)
Material & Finish: 316L Mirror-Polished Stainless Steel, Seamless Welded Construction, Structural Steel Core
Estimated Budget: $45,000 — $85,000 USD
Project Lifecycle: 6-8 Weeks (Design: 2, Engineering: 1.5, Fabrication: 3, Installation: 0.5)

2. Project Background

This large-scale stainless steel sculpture was commissioned for International Airport Authority — Terminal Expansion Project to serve as a dramatic signature installation in the terminal atrium. In high-traffic public spaces like airports, monumental mirror-polished stainless steel art becomes a landmark that anchors passenger flow and defines the architectural identity of the space.

Airport terminals present unique requirements for public sculpture — the installation must withstand constant human proximity, meet strict fire and safety codes, require minimal maintenance, and remain visually striking from all viewing angles. Mirror-polished 316L stainless steel answers all of these demands: it is inherently corrosion-resistant, easy to clean, and its reflective surface changes character continuously with ambient light and surrounding movement.

3. Design & Engineering

The “Soaring Ribbons” concept was developed through extensive 3D parametric modeling to create three flowing ribbon forms that appear to rise and spiral through the atrium space. Each ribbon is a complex double-curved surface generated from a continuous mathematical curve, then rationalized for fabrication.

Parametric Design: Custom algorithmic modeling to generate seamless double-curved ribbon geometry
Structural Engineering: Finite element analysis to ensure stability under seismic and wind loads, with concealed structural steel core
Panel Rationalization: Complex surface segmented into fabricatable panels with hidden seam lines
Reflection Analysis: Digital simulation of how the polished surface reflects atrium lighting and architecture
Safety Compliance: All edges softened, stable anchoring, materials meeting airport fire safety standards

4. Material & Craftsmanship

The sculpture is fabricated entirely from premium 316L stainless steel, chosen for superior corrosion resistance and its ability to hold a flawless mirror finish:

Material Grade: 316L stainless steel (marine-grade, ideal for demanding public environments)
Surface Finish: Multi-stage mechanical polishing to a mirror finish (RA 0.2-0.4μm) for maximum reflectivity
Fabrication: Precision CNC forming and laser-cut panels, argon-welded with seamless joint refinement
Structural Core: Internal carbon steel substructure engineered for load-bearing integrity
Protective Treatment: Passivation and clear protective coating to preserve the mirror surface

5. Project Timeline

Week 1-2: Design & Approval Parametric concept development, 3D visualization, and client design approval
Week 3-4: Engineering Structural analysis, panel rationalization, and fabrication drawings
Week 5-7: Fabrication CNC forming, welding, and multi-stage mirror polishing in our factory
Week 7-8: Installation On-site assembly with concealed anchoring system and final polish
Final: Quality Control Surface inspection, structural verification, and reflection quality sign-off

6. Why Choose Stainless Steel for Airport Art?

Monumental stainless steel sculptures are ideal for airport and transit environments:

Durability: Corrosion-resistant 316L steel lasts for decades with minimal maintenance
Low Maintenance: Non-porous surface resists staining; simple periodic cleaning restores mirror finish
Visual Impact: The reflective surface interacts with light and movement, creating a dynamic landmark
Fire Safety: Inorganic, non-combustible material meets strict airport safety regulations
Timelessness: Mirror-polished steel maintains a modern, premium aesthetic that never dates
