Abstract Human Statue — Hotel Lobby Sculptural Centerpiece

Commercial

Design Concept & Artistic Direction

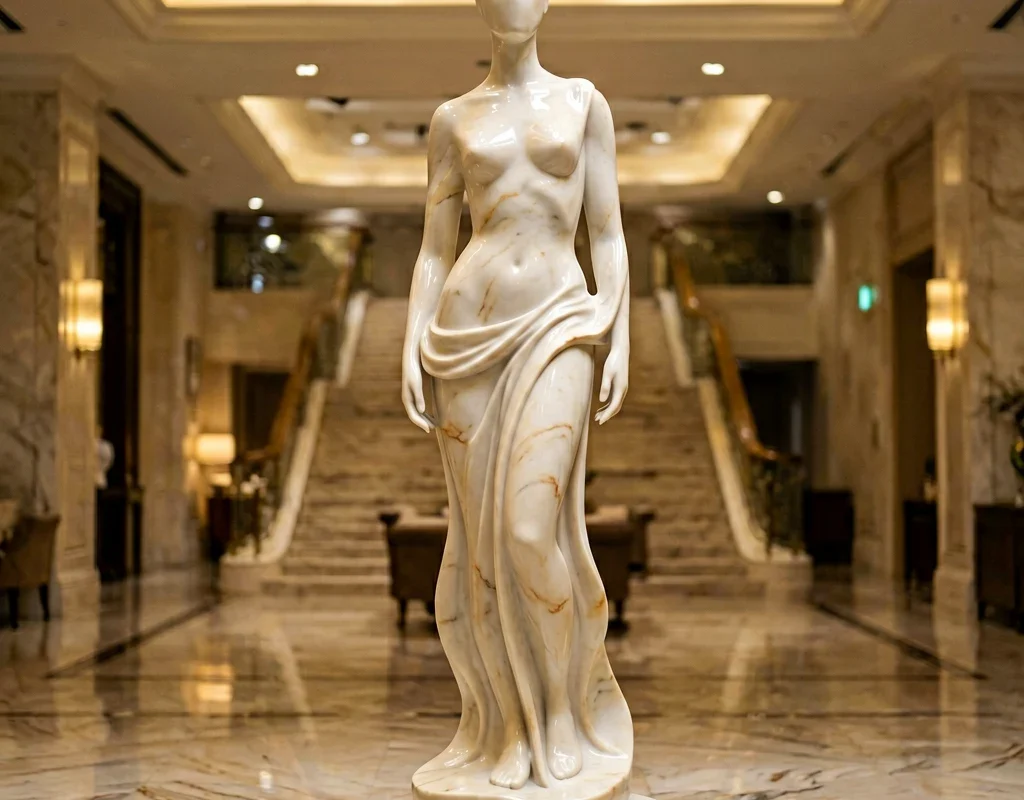

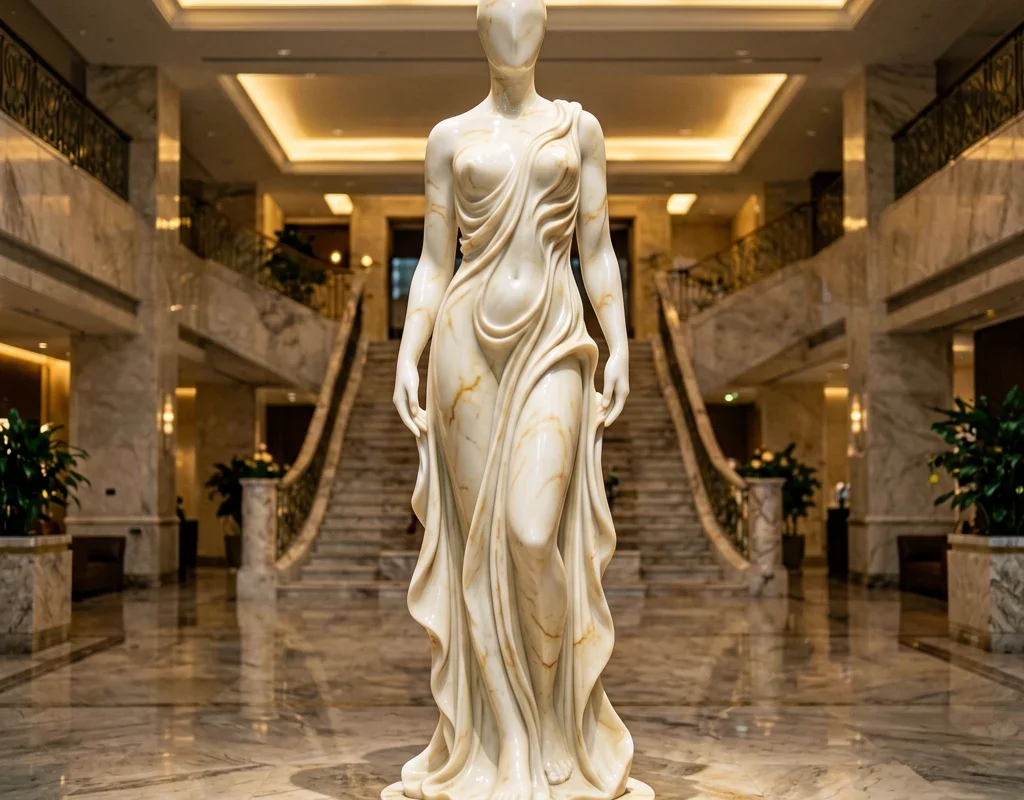

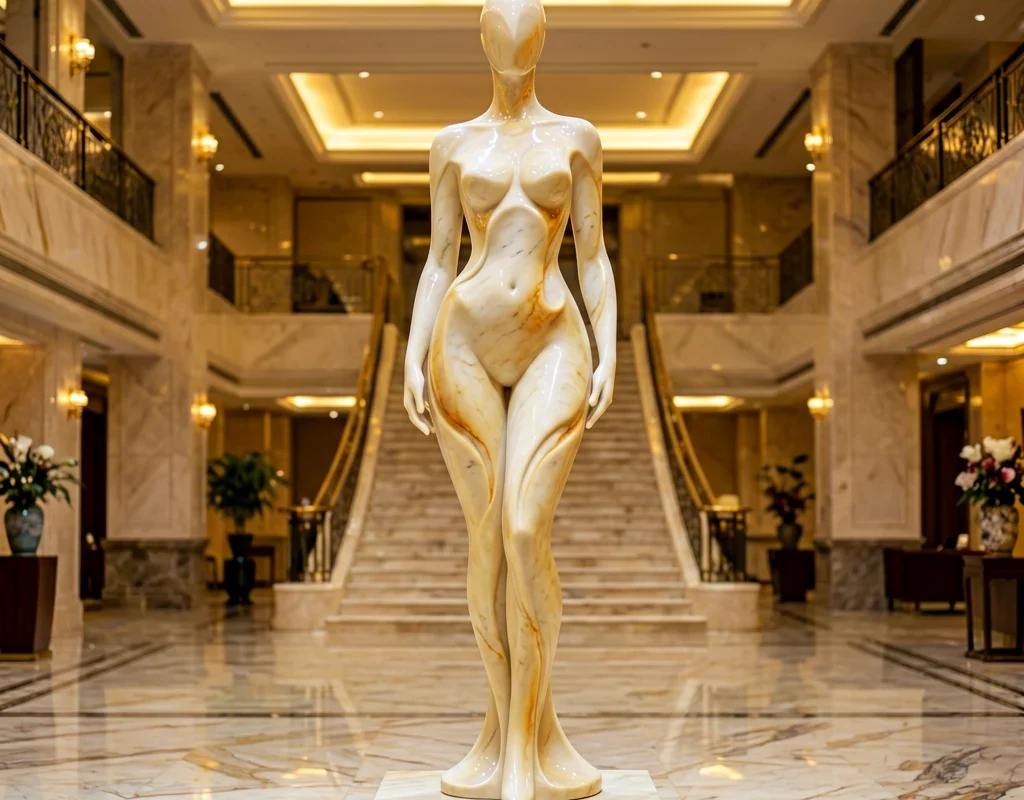

The Hotel Lobby Sculptural Centerpiece explores the relationship between classical grace and contemporary abstraction through flowing organic curves and a smooth tapered silhouette. Standing 3.4 meters in a five-star boutique hotel lobby in Tokyo, the work synthesizes references to Ancient Greek contrapposto posture with modernist simplification, creating a form that suggests human presence without literal figuration.

The sculptural composition flows upward in a single continuous curve, evoking the elegance of a dancer’s movement while maintaining absolute abstraction. The form tapers from a broad, stable base to a refined apex, creating visual tension between weight and levity. Negative space is strategically incorporated through three perforated openings that allow light to pass through the sculpture, creating dynamic shadow patterns on the lobby’s marble flooring throughout the day.

The design draws from the sculptural traditions of Constantin Brancusi and Barbara Hepworth, filtering their essentializing approach through a contemporary Japanese aesthetic sensibility that values restraint, precision, and the poetry of simplicity. The client’s brief emphasized timelessness and luxury—qualities that required moving beyond trend-driven design toward fundamental formal expression.

Location placement was critical to the concept’s success. Positioned at the intersection of the main lobby circulation paths, the sculpture functions as a visual anchor that organizes spatial flow while remaining accessible from multiple viewpoints. The 12-meter ceiling height of the lobby provides adequate vertical context, while the surrounding glass facade allows natural light to interact with the sculpture’s polished surfaces.

Material Selection & Fabrication Process

Material specification called for FRP (fiberglass-reinforced plastic) with a custom marble-effect finish, chosen to achieve the classical aesthetic of stone sculpture while maintaining the weight and cost advantages of composite fabrication. The substrate consists of multiple layers of E-glass fiber mat saturated with isophthalic resin, providing structural integrity while allowing for the complex double-curved geometry required by the design.

Fabrication spanned 10 weeks from digital modeling to final installation. A full-scale 3D model was generated using ZBrush and processed through Grasshopper for surface optimization, resulting in 42 NURBS surfaces that were converted to developable patterns for mold construction. The negative mold was fabricated from epoxy-coated MDF, with a total of 8 mold segments required to capture the complex curvature of the form.

The marble-effect finish was achieved through a multi-stage process: base coat (white epoxy primer), color layering (multiple translucent glazes in warm ivory and cool gray tones), and topcoat (high-gloss polyurethane with UV stabilizers). The client specified a surface hardness of 2H on the Mohs scale, requiring three additional clear coats beyond standard specifications.

Internal reinforcement included a welded stainless steel armature with 25mm structural tubing at primary load points and 16mm secondary bracing throughout. The armature was designed to distribute the sculpture’s 185kg weight across the base contact area, preventing point loading on the marble flooring.

Engineering & Structural Solution

Structural engineering focused on three objectives: static load distribution on the lobby floor, seismic resistance for Tokyo’s seismic zone classification, and long-term surface durability under indoor environmental conditions.

The base anchoring system uses a concealed steel mounting plate bonded to the underside of the sculpture, with four M16 anchor points securing to a reinforced concrete pad embedded within the existing floor. The pad measures 1.2m x 1.2m x 0.3m and was constructed using fiber-reinforced concrete with post-tensioning to prevent cracking under point loads.

Seismic design incorporates a sliding-base detail that allows the sculpture to move laterally up to 75mm during seismic events, reducing inertial forces while maintaining visual stability under normal conditions. The base plate incorporates neoprene dampers that absorb high-frequency vibrations while permitting the controlled lateral movement required for seismic performance.

Surface durability was addressed through the specified multi-layer finish system, which includes UV-stabilized topcoats to prevent yellowing under the lobby’s substantial natural lighting. The marble-effect glazing was tested for scratch resistance (ASTM D3363 pencil hardness test) and chemical resistance to common cleaning agents used in hospitality environments.

Installation & Site Integration

Installation required careful coordination with the hotel’s construction timeline, as the sculpture needed to be in place before the lobby’s final flooring and ceiling work. The delivery team arrived 48 hours before the scheduled installation window to conduct site measurements and verify anchor point positioning.

The sculpture was transported in a custom-built crate with internal vibration dampening, arriving at Tokyo Haneda Airport and transferring to a specialized art logistics vehicle for the 30-minute transport to the hotel site. Un crating and positioning required a team of four technicians and a hydraulic pallet jack with 500kg capacity.

Final positioning was verified using laser leveling equipment to ensure the sculpture’s vertical axis aligned with the architectural grid of the lobby within 2mm tolerance. The concealed mounting system was secured using torque-controlled wrenches to specification, with all anchor points documented in the installation report.

Site integration included collaborative lighting design with the hotel’s interior architects. Three LED spots at 3000K were positioned in the ceiling cove to illuminate the sculpture from above and behind, creating a dramatic silhouette effect while avoiding glare on surrounding surfaces. The lighting was programmed with a dimmer system to adjust intensity based on time of day and natural light conditions.

Client Outcome & Cultural Impact

The hotel client, a boutique luxury brand expanding its Japan portfolio, reported exceptional satisfaction with the installation’s impact on guest experience. Within the first month, the sculpture appeared in over 200 guest photographs shared on social media platforms, with the hashtag #LobbyArtTokyo generating significant organic engagement.

The hotel’s management company commissioned a post-occupancy survey of guests and staff, revealing that 84% of respondents identified the sculpture as a “memorable feature” of the property. The piece has been featured in the hotel’s marketing materials and referenced in travel magazine articles covering the property’s design.

From a branding perspective, the sculpture successfully communicates the hotel’s positioning as a destination for contemporary art and design-conscious travelers. The classical-modern synthesis of the form resonates with Tokyo’s cultural context, where traditional aesthetics coexist with cutting-edge contemporary expression.

The installation has also generated interest from other hospitality clients in the region. The hotel’s management company has requested quotations for similar works for their upcoming properties in Osaka and Kyoto, indicating that the sculpture has become a reference point for the brand’s art curation strategy across the Asia-Pacific region.

Artistically, the work achieves its goal of creating a timeless form that transcends temporary design trends. The flowing curves and polished surface finish create a sense of permanence and grace appropriate to a luxury hospitality setting, while the abstract approach invites personal interpretation from viewers with diverse cultural backgrounds.
